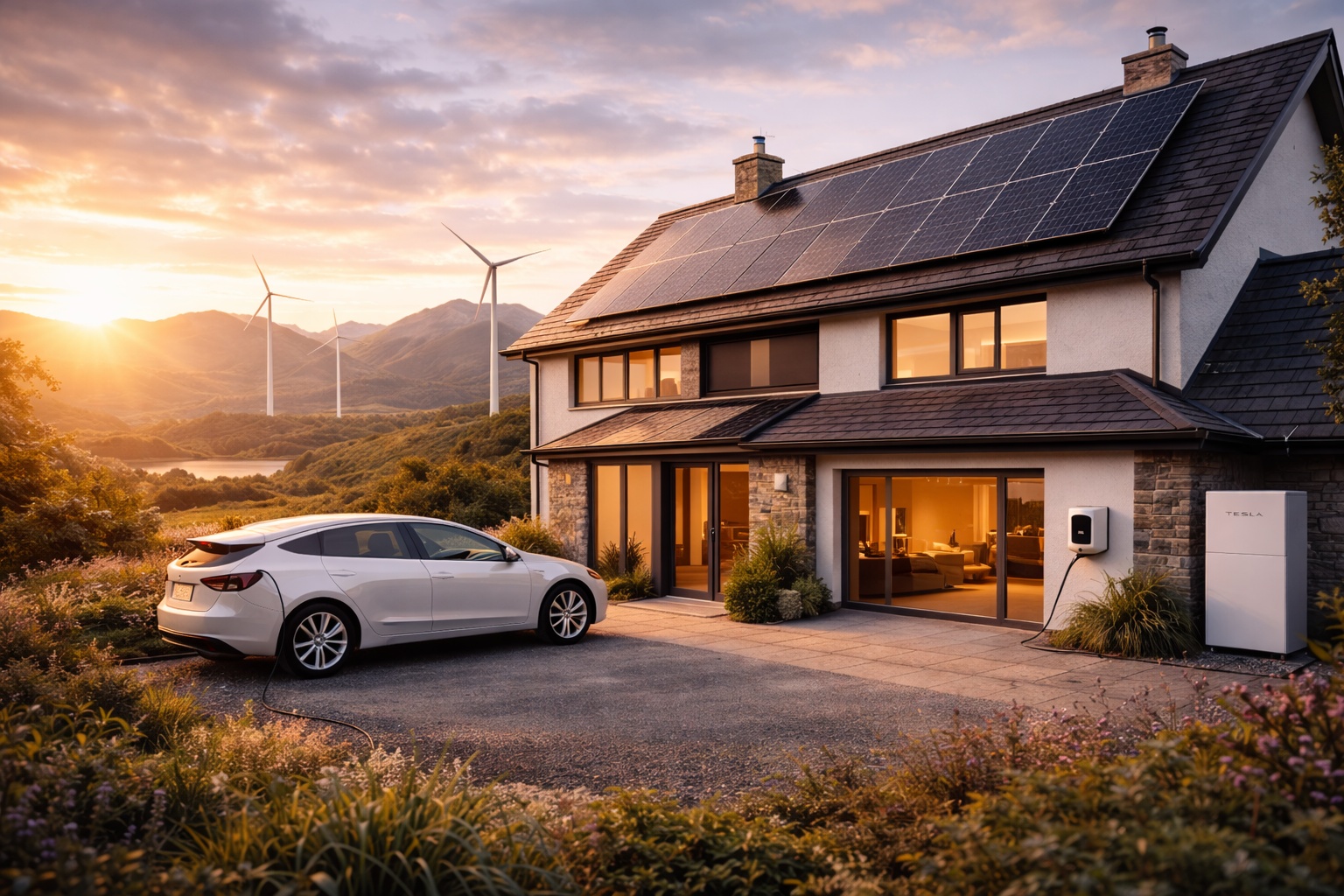

Scottish home with solar panels, EV charger and battery storage

solarinstallersscotland.solar — Technical Solar Experts

The Engineering Behind Scotland's Best Solar Installations

Name: Scottish Energy Efficiency
Address: Unit 3, Prospect III, Prospect Business Centre, Dundee, Scotland, DD2 1TY, United Kingdom
Telephone: 0141 230 0198
Price range: ££

PVGIS-designed systems. Monocrystalline panels optimized for Scotland's diffuse light. High-efficiency inverters. Performance ratios of 0.80-0.85. Technical expertise that delivers superior results.

PVGIS System Design

22.8% Panel Efficiency

MCS Certified

Call 0141 230 0198

System Performance Snapshot

Panel efficiency:up to 22.8%

Inverter efficiency:up to 98.1%

Performance ratio:0.78-0.85

Annual generation (4kW, Edinburgh):

~3,400 kWh/year

Carbon offset:

~770kg CO₂/year

PVGIS-designed systems | MCS certified

PVGIS System Design

★★★★★4.9/5 Rating

MCS Certified

25yr Warranty

All Scotland Coverage

Scottish Energy Efficiency designs every solar installation using PVGIS (Photovoltaic Geographical Information System) satellite irradiance data specific to each property's exact coordinates in Scotland. We exclusively use monocrystalline solar panels with efficiencies of 20–23%, which outperform polycrystalline panels in Scotland's predominantly diffuse light conditions. Our installations consistently achieve a performance ratio of 0.80–0.85 — above industry average. Call 0141 230 0198 for a technical solar assessment.

22.8%

Panel Efficiency

Monocrystalline technology

98%

Inverter Efficiency

High-performance conversion

0.80-0.85

Performance Ratio

Above industry average

Panel Technology

Why We Use Monocrystalline Panels

Scotland's diffuse light conditions require panels optimized for indirect sunlight. Here's how different panel technologies compare:

Specification	Monocrystalline	Polycrystalline	Thin Film
Efficiency	20-23%	15-17%	7-13%
Diffuse light performance	Excellent	Good	Good
Temperature coefficient	Better	Average	Best
Scotland suitability	Ideal	OK	For flat roofs
Our recommendation	Yes - All installs	—	Flat roofs only

Technical note: We use monocrystalline panels for all Scottish installations due to their superior performance in Scotland's diffuse light conditions and better temperature coefficient.

Inverter Selection

Choosing the Right Inverter Type

Your roof's shading profile determines the optimal inverter type. We select the right technology for your specific installation:

Feature	String Inverter	Microinverter	Power Optimizer
Efficiency	96-98%	95-97%	96-98%
Best for unshaded roofs	Excellent	Good	Good
Partial shading	Affected by shading	Best performance	Good performance
Cost	Most economical	Higher cost	Mid-range
Monitoring	System-level	Panel-level	Panel-level
Top brands	SolarEdge, Sungrow, Growatt, Fronius	Enphase IQ8 series	SolarEdge
Scotland recommendation	Unshaded roofs	Shaded roofs	Good compromise

Our selection process: We recommend string inverters for unshaded Scottish roofs (highest efficiency, best value) and microinverters for roofs with significant shading from trees, chimneys, or neighboring buildings.

PVGIS System Design Methodology

We use the EU's Photovoltaic Geographical Information System — real satellite irradiance data for accurate energy yield predictions across Scotland.

Edinburgh

4kW system:~3,400 kWh/year

Based on PVGIS satellite data for Edinburgh coordinates

Glasgow

4kW system:~3,200 kWh/year

West coast irradiance data for Glasgow locations

Aberdeen

4kW system:~3,100 kWh/year

Northeast Scotland irradiance calculations

Our sizing methodology: We target 90–110% of your annual electricity consumption, accounting for roof pitch (optimal 30–35° for Scotland), orientation (south optimal, SW/SE lose ~5–10%), shading analysis, and panel temperature coefficients.

Get Your Technical Assessment

Book a detailed technical solar survey. We'll assess your roof, analyze shading, and provide PVGIS-based energy yield calculations.

Technical FAQ

What type of solar panels are best for Scotland's climate?

Monocrystalline silicon solar panels are the best choice for Scotland's climate. Scotland's predominantly diffuse (indirect) light conditions favour monocrystalline panels, which maintain higher efficiency in low-light and overcast conditions compared to polycrystalline. Efficiencies of 20–23% are achievable with modern monocrystalline panels from brands including Longi, JA Solar and Jinko. Scottish Energy Efficiency specifies monocrystalline for all Scottish installations. Call 0141 230 0198.

How do you size a solar system for a Scottish home?

We use PVGIS — the EU Photovoltaic Geographical Information System — to calculate the precise expected annual energy yield for your property using actual satellite irradiance data for your specific location in Scotland. We then size the system to generate 90–110% of your annual electricity consumption, accounting for roof pitch, orientation, shading and the temperature coefficient of your selected panels. Call 0141 230 0198 for a PVGIS-based assessment.

Does cold Scottish weather affect solar panel performance?

Cold temperatures actually benefit solar panel output. Solar panels generate more electricity when cool — the temperature coefficient of most panels means they produce around 0.3–0.5% more power per degree below 25°C. Scotland's cooler climate is therefore a slight advantage over southern England for panel performance. The main Scottish challenge is lower total irradiance — which we address through careful PVGIS-based system sizing. Call 0141 230 0198.

What is a performance ratio and why does it matter?

Performance ratio (PR) is the ratio of actual energy output to theoretical maximum output. A typical well-designed Scottish system achieves 0.78–0.85 PR. Factors affecting PR include shading, soiling (dirt on panels), temperature, cable losses, and inverter efficiency. Our systems typically achieve 0.80–0.85 PR — above the industry average — due to careful component selection, optimal system design, and professional installation standards.

String inverter or microinverters — which should I choose?

For unshaded Scottish roofs, we recommend string inverters (96–98% efficiency, most economical, brands like SolarEdge, Sungrow, Fronius). For roofs with significant shading from trees, chimneys, or neighboring buildings, microinverters (e.g., Enphase IQ8 series) provide better performance as they optimize each panel individually. Power optimizers (SolarEdge) offer a compromise. We assess your specific roof and recommend the optimal technology during our technical survey.

What roof pitch is optimal for solar in Scotland?

For Scotland, the optimal roof pitch is 30–35° facing south. However, systems work effectively from 15° (minimum practical pitch) to 60°. East-west facing roofs lose approximately 20–25% compared to south-facing, while southwest/southeast orientations lose only 5–10%. We calculate the precise expected yield for your specific roof pitch and orientation using PVGIS data during our technical assessment.

How do Scottish sandstone and granite roofs affect installation?

Scottish sandstone and granite require specialist fixings and mounting systems. We use appropriate anchor systems that distribute load correctly and don't compromise the structural integrity of traditional Scottish roofing materials. Our installers are trained in working with period properties and conservation areas. Wind loading is also more significant in Scotland — we specify robust mounting systems rated for Scottish wind conditions.

What is PVGIS and why do you use it?

PVGIS (Photovoltaic Geographical Information System) is the European Commission's solar irradiance database, using real satellite data to calculate expected solar energy generation for any location in Europe. Unlike generic solar calculators, PVGIS accounts for your exact coordinates, local climate patterns, horizon shading, and historical weather data. We use PVGIS for every system design to provide accurate, realistic energy yield predictions specific to your Scottish location.
